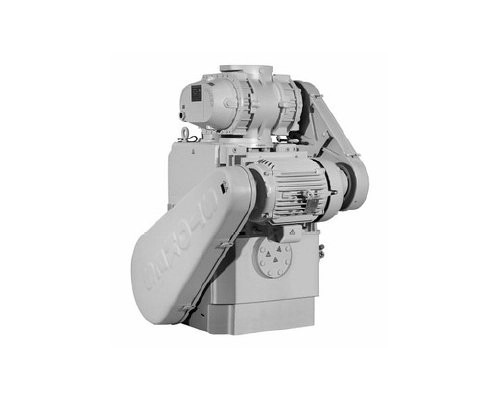

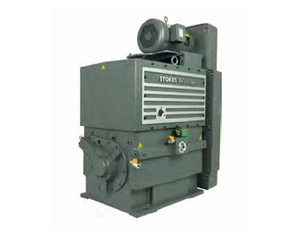

MB Series Booster Pumps
STOKES
STOKES MB series vacuum system is mainly used in the application of quickly reaching high vacuum.
It is a vacuum system composed of a rotary piston pump and a direct-type Lu-type pump in series.
Some models directly start the Lu-type pump from atmospheric pressure to quickly discharge large quantities of water.
All systems are equipped with gas ballast device, which can effectively remove water and gas and obtain maximum efficiency.
| Model | 212 MB | 212 MBX | 412 MB | 412 MBX | 612 MB | 612 MBX | |
| Displacement(B.P) | m3/hr | 416 | 680 | 680 | 1040 | 1040 | 6528 |
| Displacement(R.P) | m3/hr | 255 | 255 | 510 | 510 | 510 | 1240 |
| Pressure (Cut-in pre.) | torr | 760 | 55 | 760 | 760 | 760 | 15 |
STOKES MB series vacuum system is mainly used in the application of quickly reaching high vacuum.
It is a vacuum system composed of a rotary piston pump and a direct-type Lu-type pump in series.
Some models directly start the Lu-type pump from atmospheric pressure to quickly discharge large quantities of water.
All systems are equipped with gas ballast device, which can effectively remove water and gas and obtain maximum efficiency.
| Model | 212 MB | 212 MBX | 412 MB | 412 MBX | 612 MB | 612 MBX | |
| Displacement(B.P) | m3/hr | 416 | 680 | 680 | 1040 | 1040 | 6528 |
| Displacement(R.P) | m3/hr | 255 | 255 | 510 | 510 | 510 | 1240 |
| Pressure (Cut-in pre.) | torr | 760 | 55 | 760 | 760 | 760 | 15 |
